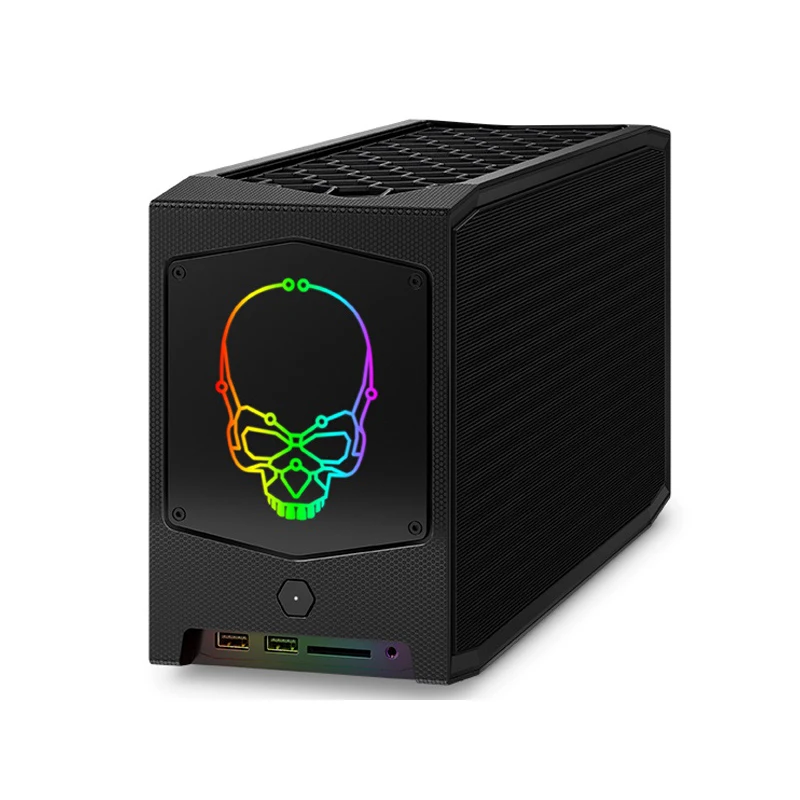

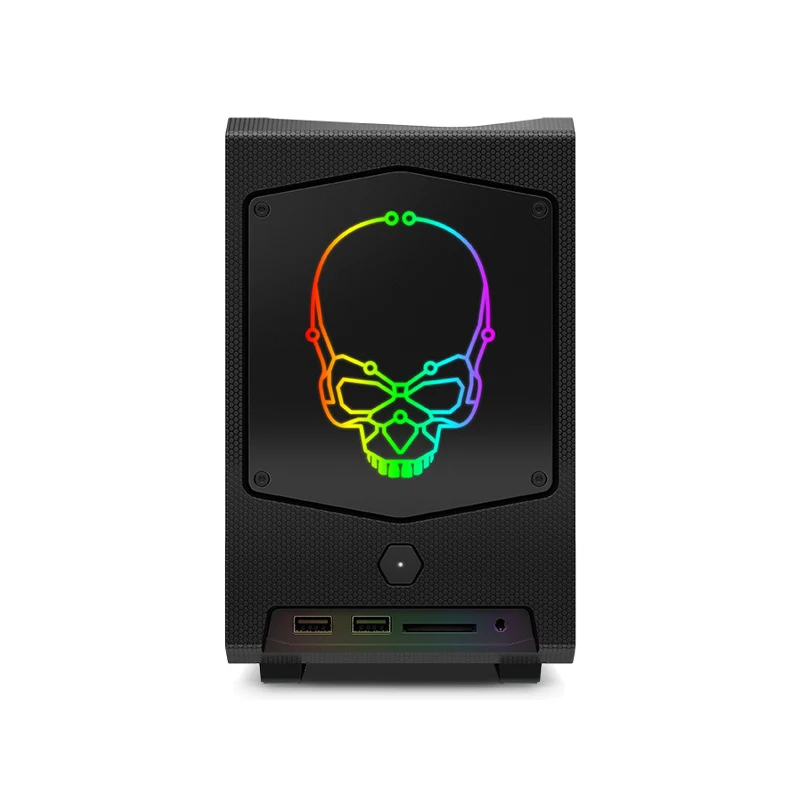

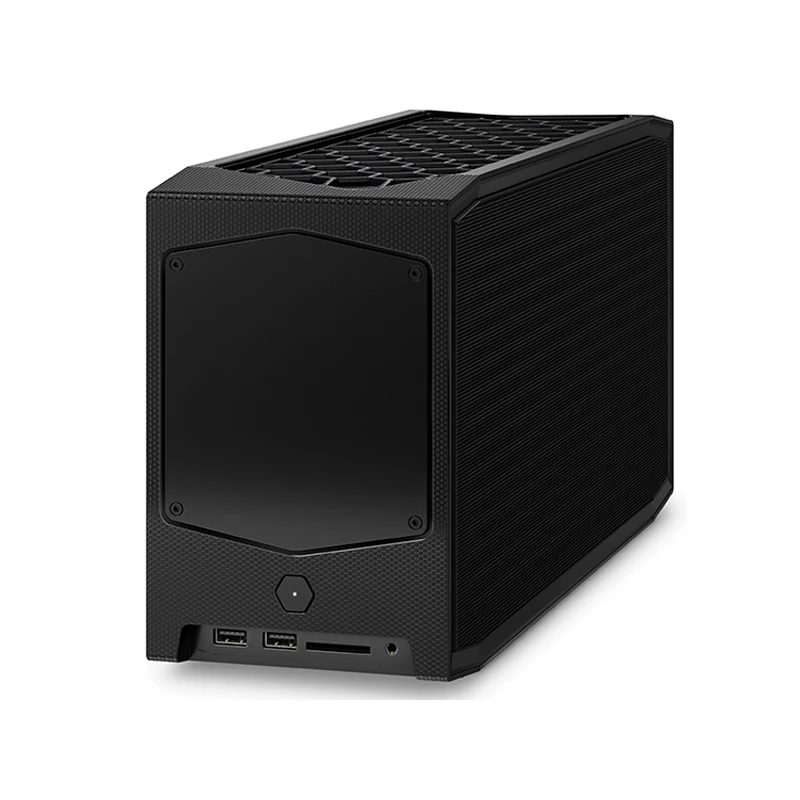

Intel NUC11BTMi9 Core i9-11900KB Processor 4.9GHz UHD Graphics Mini PC Window 11 Thunderbolt 4 3x4K 6E Game Computer ITX Host

Description

Product Collection：Intel NUC Kit with 11th Generation Intel Core Processors

Code Name：Products formerly Beast Canyon

Supported Operating Systems：Windows 10, 64-bit*

Board Number：BNUC11DBBi90000

Internal Drives Supported：4

TDP：65 W

Board Chipset：Intel WM590 Chipset

Processor Included：Intel Core i9-11900KB Processor (24M Cache, up to 4.90 GHz)

Total Cores：8

Total Threads：16

Processor Base Frequency：3.30 GHz

Max Turbo Frequency：4.90 GHz

Memory & Storage

Max Memory Size (dependent on memory type)：64 GB

Memory Types：

DDR4 3200MHz 1.2V SO-DIMM

DDR4 3200 MHz 1.35V SO-DIMM – XMP is required to enable 1.35V memory

Max of Memory Channels：2

Max Memory Bandwidth：51.2 GB/s

Max of DIMMs：2

Processor Graphics

Integrated Graphics ：Yes

Graphics Output：2x Thunderbolt 4, HDMI 2.0b

Displays Supported ：3

Expansion Options

PCI Express Configurations：

2x M.2 PCIe X4 Gen3 slots (PCH), 2x M.2 PCIe X4 Gen4 slots (CPU); Double-wide PCIe X16 Gen4 (CPU) slot, PCIe X4 Gen4 (CPU) slot, 12″ max card length

Removable Memory Card Slot：SDXC with UHS-II support

M.2 Card Slot (wireless)：Intel Wi-Fi 6E AX210

M.2 Card Slot (storage)：2x via PCH + 2x via CPU (NVMe)

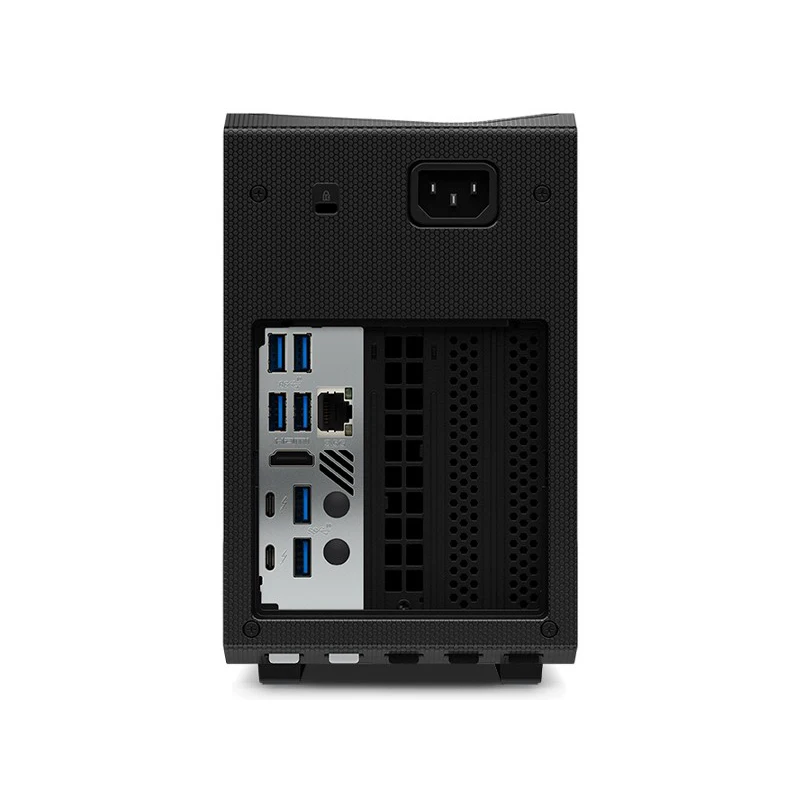

I/O Specifications

USB Configuration：

6x rear USB 3.1g2, 2x Thunderbolt 4 (USB 3.1g2), 2x front USB 3.1g2, 2x USB 3.1 via internal headers, 2x USB 2.0 via internal headers

SATA Ports：2

RAID Configuration：2x M.2 SATA/PCIe SSD (RAID-0 RAID-1)

Audio (back channel + front channel)：7.1 digital; L+R+mic (F)

Integrated LAN：Intel Ethernet Controller i225-LM

Integrated Wireless：Intel Wi-Fi 6E AX210(Gig+)

Integrated Bluetooth：Yes

Additional Headers：2x USB2.0, FRONT_PANEL

Thunderbolt Ports：2x Thunderbolt 4

Chassis Dimensions

357 x 189 x 120mm（8L）
